$ 301.40
Out of stock
SICK sensor one of the world’s leading producers of sensors and sensor solutions for industrial applications. SICK is a technology and market leader in Factory and Logistics Automation as well as Process Automation. The sensor range are: Laser Sensors, Cylinder Sensors, Photoelectric Sensors, Fork Sensors, Encoders, Color Sensors, Distance Sensor, Contrast Sensor, Color Sensor, Inductive Proximity Sensors, Fiber Optic Sensor with our signature range sick sensor intelligence.
Part Number:1059272

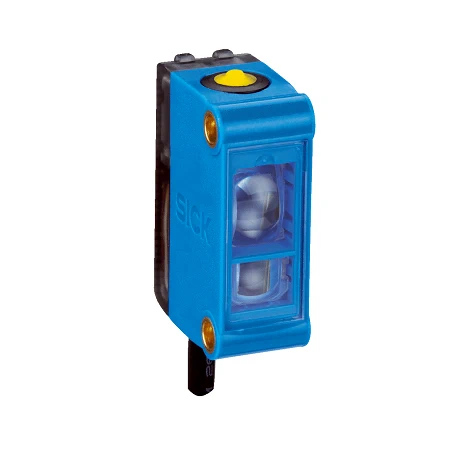

Photoelectric Sensor Model:WTB4-3N1192
OEM Spec Ref
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm … 120 mm 1) |
| Sensing range | 40 mm … 120 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | 5 mm x 22 mm (40 mm) 3) |
| Wave length | 650 nm |
| Adjustment | Single teach-in button |
| Special applications | Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects wrapped in film |
| Special features | Multi-background suppression |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Switching output | NPN |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | < 1.2 ms 4) |
| Switching frequency | 400 Hz 5) |
| Connection type | Cable, 4-wire, 2 m 6) |
| Cable material | PVC |
| Circuit protection | A 7)
C 8) D 9) |
| Protection class | III |
| Weight | 30 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67
IP66 |
| Special feature | Line-shaped light spot |
| Ambient operating temperature | –40 °C … +60 °C |
| Ambient temperature, storage | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
