$ 929.20
| Range of product | OsiSense ATEX D |
| Series name | Special format |

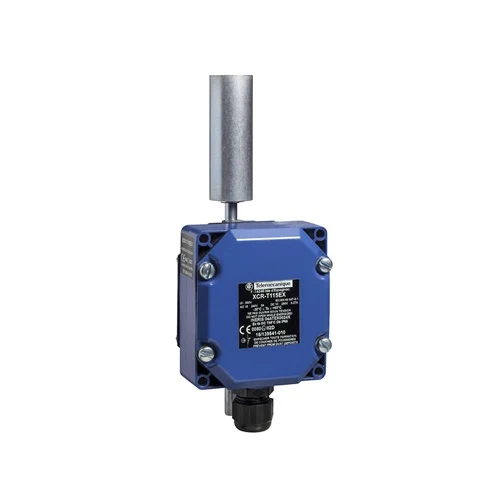

| Product or component type | Limit switch |
| Product specific application | For conveyor belt shift monitoring |
| Device short name | XCR |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller zinc plated steel with lever |
| Switch actuation | By conveyor belt |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5…2 x 2.5 mm² |
| Contacts type and composition | 2 x 1 C/O |
| Contacts insulation form | Za |
| Contact operation | Snap action |
| Contact block per direction [control circuit] | 1 per direction |
| Positive opening | With |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Complementary | |
| Environment | |
| Shock resistance | 30 gn for 18 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I conforming to IEC 60536, class I conforming to NF C 20-030 |
| Protective treatment | TC |
| Dust zone | Zone 21 – 22 |
| Product certifications | INERIS 04ATEX0014X |
| IEC-Ex INE 16.0048X | |
| Standards | IEC 60079-31 |
| IEC 60079-0 | |
| Directives | 2014/34/EU – ATEX directive |
| Packing Units | |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 10 CENTIMETER |
| Package 1 width | 9.3 CENTIMETER |
| Package 1 length | 23.5 CENTIMETER |
| Package 1 weight | 1.295 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 8 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 10.86 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 64 |
| Package 3 height | 75 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 95.38 KILOGRAM |
