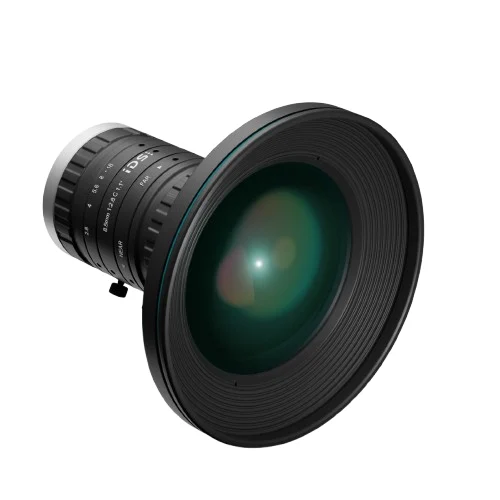

Detecting microscopic defects on modern, miniaturized PCBs requires extreme clarity at close range. The 20.50 MP resolution and 2.40 micron minimal pixel pitch enable detection of sub-millimeter defects, while the 0.10 m M.O.D. allows the camera head to be positioned compactly close to the inspection surface. Lockable focus and iris ensure the calibration is not lost due to the rapid movement and vibration of the inspection gantry.

Robots need to see the entire contents of a bin simultaneously while maintaining enough detail to recognize edges of irregularly shaped items. The 70.4 degree by 70.4 degree angle of view combined with a large 1.1 inch maximal image circle provides massive area coverage, reducing the need for multiple cameras. The manual lockable screws prevent mechanical drift from constant robotic arm movement.

Inspecting large automotive parts typically requires either multiple cameras or moving a camera across the part. The 90.0 degree diagonal angle of view captures large portions of the component in a single frame. The F/2.8-16 aperture range provides flexible depth of field adjustments, while the locking mechanism guarantees optical stability against the heavy vibrations of industrial stamping presses.
