IDS Ensenso CR/XR Power Supply Set 24 V 220 W Accessories

Technical Overview

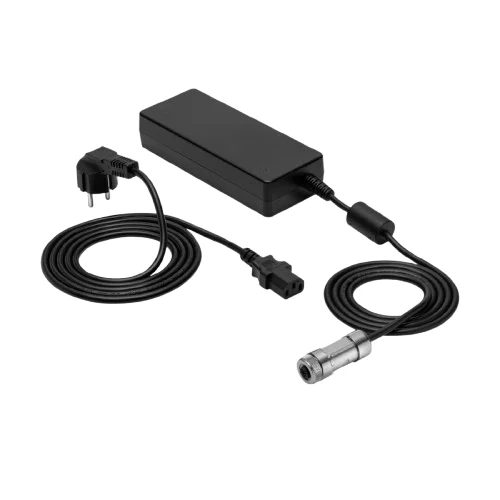

The Ensenso CR/XR power supply set is a high-performance power solution designed for industrial 3D vision applications. Delivering 24 V at 220 W, this set is specifically engineered for compatibility with the Ensenso CR67, XR30, and XR36 camera series. The package includes an Ensenso power supply unit with a 0.9 m M12 5-pin female Binder connector and a 1.80 m power supply cable for flexible installation in machine vision environments.

Key Features

M12 5-pin female Binder to table power pack connection
High-output 220 W capacity for stable camera operation
Comprehensive set including both power supply and main cable
Optimized for Ensenso CR and XR series cameras
Industrial-grade M12 connector interface

Technical Specification Matrix

Parameter	Value
Item number	1012223
Voltage	24 V
Power	220 W
Connector type	M12 5-pin female Binder
Suitable for	Ensenso CR67, Ensenso XR30, Ensenso XR36
Ensenso power supply cable length	0.9 m
Power supply cord length	1.80 m
Lockable	No
Screw-in	No

Industrial Applications

1. High-Speed Robotic Bin Picking in Automated Warehouses

Powering an Ensenso XR36 or CR67 3D stereo vision camera mounted on a robotic arm for bin picking of randomly oriented components. The high-capacity 220 W power supply accommodates the intense power draw of the camera's internal FPGA and 100 W LED projector, while the M12 5-pin female Binder connector provides a reliable industrial interface for the 24 V input.

Problem Solved

Automates the continuous singulation and picking of bulk parts from deep bins without overloading central industrial PCs, fully supporting the high-power edge processing and illumination required by the 3D camera.

220 W24 VM12 5-pin female BinderRobotic Bin Picking3D Stereo VisionEdge Processing

2. Large-Volume Mixed-SKU Pallet Depalletization

Supplying stable 24 V power to an Ensenso XR30 system used to capture 3D point clouds of entire mixed-SKU pallets (up to 8 cubic meters). The 2.7 m total combined cable reach (0.9 m Ensenso power supply cable + 1.80 m power supply cord) allows the high-wattage 220 W power brick to be routed flexibly along a gantry structure, safely powering the intense FlexView2 projector system.

Problem Solved

Enables reliable point cloud generation for large, multi-cubic-meter objects by ensuring steady, high-wattage power delivery over an adequate cable length without causing voltage drops to the camera's pattern projectors.

24 V220 W0.9 m power supply cable length1.80 m power cord lengthDepalletizationPoint Cloud Generation

3. Inline 3D Quality Inspection for Reflective Automotive Parts

Delivering continuous power to an Ensenso CR67 camera performing high-resolution 3D inspection on automotive production lines. The 220 W capacity ensures the integrated high-contrast LED projector can reliably illuminate highly reflective metallic components without power dips, utilizing the 24 V industrial voltage standard through a secure M12 5-pin connector.

Problem Solved

Solves the issue of unstable or missing point cloud data on shiny, reflective surfaces by providing enough sustained wattage to drive intense, high-contrast LED projection patterns over continuous production shifts.

24 V220 WM12 5-pin female Binder3D InspectionMachine VisionHigh-Contrast Illumination
