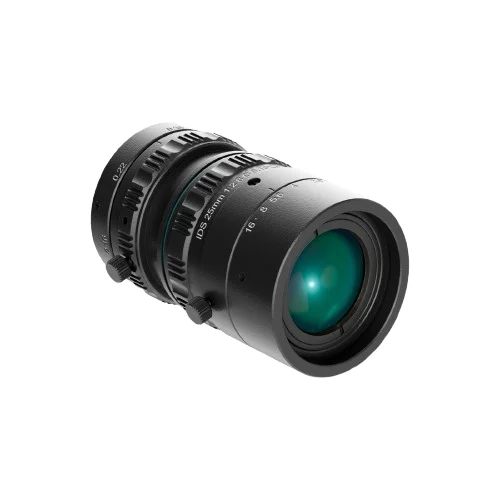

IDS 25mm C-Mount Lens – Model Ma-12M120-C2528 (1.2″, 12MP, F2.8–F16)

The IDS Ma-12M120-C2528 is a high-precision 25mm C-Mount lens engineered for modern industrial imaging systems requiring outstanding sharpness and stability. Optimized for large 1.2″ sensors and supporting resolutions down to 3.45 μm pixel pitch, this macro-capable 12MP lens delivers exceptional contrast, minimal distortion, and consistent performance across short and mid-range working distances. Its manual iris and focus rings allow fine optical tuning, making it suitable for machine vision inspection, electronics quality control, and metrology applications where accuracy and repeatability matter.

Product Specifications

• Model: Ma-12M120-C2528
• Article Number: 1012312
• Compatible Sensor Size: 1.2″ (Ø19.3 mm)
• Focal Length: 25 mm
• Resolution Capability: Pixel size 3.45 μm (Up to 12MP)
• Mount Type: C-Mount
• Aperture Range: F2.8 to F16 (Manual Adjustment)
• Working Distance: 54 mm to 240 mm
• Distortion:
  <0.10% at 0.40X
  <0.05% at 0.25X
  <0.05% at 0.10X
• Back Focal Length: 15.28 mm
• Chief Ray Angle: 12.13°
• Effective Diameter: Front: 20.20 mm, Back: 16.00 mm
• Dimensions: Ø35.00 mm × 64.2 mm
• Filter Thread: M30.5 × 0.5–6H
• Weight: 0.12 kg
• Operating Temperature: −20°C to +60°C

Field of View (H × V × D)

At Working Distance 54 mm

• 1″ Sensor: 41.8 × 23.5 × (Diagonal ≈ 48.3 mm)

• 2/3″ Sensor: 22.9 × 17.1 × (Diagonal ≈ 28.3 mm)

• 1/2″ Sensor: 16.0 × 12.0 × (Diagonal ≈ 20.0 mm)

• 1/1.8″ Sensor: 18.0 × 13.5 × (Diagonal ≈ 22.5 mm)

At Working Distance 240 mm

• 1″ Sensor: 111.3 × 62.7 × (Diagonal ≈ 127.5 mm)

• 2/3″ Sensor: 58.7 × 44.0 × (Diagonal ≈ 73.3 mm)

• 1/2″ Sensor: 42.7 × 32.0 × (Diagonal ≈ 53.3 mm)

• 1/1.8″ Sensor: 48.0 × 36.0 × (Diagonal ≈ 60.0 mm)

Key Benefits

• High-Resolution Optics: Supports up to 12MP sensors for sharp, detailed imaging in precision inspection tasks.

• Large 1.2″ Sensor Coverage: Ensures excellent illumination uniformity with minimal vignetting on large-format sensors.

• Ultra-Low Distortion: <0.10% distortion performance provides highly accurate measurement and reliable metrology imaging.

• Macro-Capable Design: Short working distance range (54–240 mm) enables close-up inspection of small components with high clarity.

• Industrial-Grade Build: Robust construction maintains optical stability under demanding automation environments.

• Precise Manual Control: Manual iris and focus rings allow fine adjustments for exposure, depth of field, and sharpness optimization.

• Compact Integration: Slim 35 mm housing and lightweight 0.12 kg design fit easily into tight machine vision setups.

• C-Mount Compatibility: Standard C-Mount interface for seamless pairing with IDS cameras and other industrial vision systems.

 Download Datasheet

Get the full technical details and mechanical drawings in the official PDF:

• Click here to download 1012312 Datasheet
