IDS 35mm C-Mount Lens – Model Ma-12M120-C3528 (1.2″, 12MP, F2.8–F16)

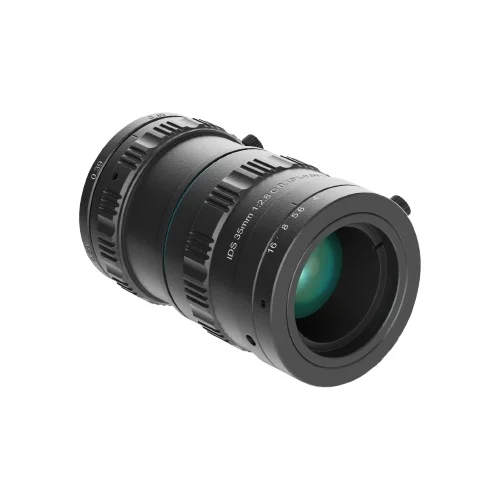

The IDS Ma-12M120-C3528 is a high-precision 35mm C-Mount industrial lens engineered for modern machine vision systems that demand exceptional optical stability, low distortion, and high image clarity. Designed for large 1.2-inch sensors and resolutions down to 3.45 μm pixel size, this 12MP-class macro lens delivers superb contrast and uniform sharpness across the field. Its manual iris and focus controls offer fine-tuned performance, while the extended working distance range of 47 to 185 mm supports inspection tasks requiring both close-range macro detail and mid-range imaging. Built with a robust housing and optimized chief ray angle, it ensures reliable operation even in demanding automation environments.

Product Specifications

• Model: Ma-12M120-C3528

• Article Number: 1012313

• Compatible Sensor Size: 1.2″ (Ø19.3 mm)

• Focal Length: 35 mm

• Resolution Capability: Pixel size 3.45 μm (Up to 12MP)

• Mount Type: C-Mount

• Aperture Range: F2.8 to F16 (Manual Adjustment)

• Working Distance: 47 mm to 185 mm

• Distortion:
  0.10% at 0.400X
  0.16% at 0.190X
  0.06% at 0.690X

• Back Focal Length: 13.89 mm

• Chief Ray Angle: 8.82°

• Effective Diameter: Front: 19.70 mm, Back: 18.80 mm

• Dimensions: Ø30.00 mm × 55.93 mm

• Filter Thread: M27 × 0.5–6H

• Weight: 0.14 kg

• Operating Temperature: −20°C to +60°C

Field of View (H × V × D)

• 1″ Sensor: 34.8 × 19.6 mm (Diagonal ≈ 39.9 mm)

• 2/3″ Sensor: 18.3 × 13.8 mm (Diagonal ≈ 22.8 mm)

• 1/2″ Sensor: 13.3 × 10.0 mm (Diagonal ≈ 16.6 mm)

• 1/1.8″ Sensor: 15.0 × 11.3 mm (Diagonal ≈ 18.9 mm)

Key Benefits

• High-Resolution Optics: Supports up to 12MP sensors with 3.45 μm pixels for sharp, detailed industrial imaging.

• Large 1.2″ Sensor Coverage: Ensures uniform illumination across Ø19.3 mm sensors with minimal vignetting.

• Ultra-Low Distortion: Distortion as low as 0.06% enables accurate measurement and stable metrology performance.

• Macro-Capable Working Range: 47–185 mm working distance supports close-up inspection of fine components.

• Industrial-Grade Build: Robust, compact design maintains optical stability in demanding automation environments.

• Precise Manual Control: Manual iris and focus rings provide fine-tuned control of exposure, DOF, and sharpness.

Download Datasheet

Get the full technical details and mechanical drawings in the official PDF:

• Click here to download 1012313 Datasheet

Related IDS Imaging Lenses (Same Series)

• Ma-12M120-C2528 – 25mm, 1.2″, 12MP
  Wide-angle alternative offering a larger field of view for general inspection and robotics imaging tasks.
• Ma-12M120-C5028 – 50mm, 1.2″, 12MP
  Longer focal length option providing higher magnification and improved detail capture at extended working distances.

 Need Support or Custom Integration?

We support OEM machine vision integration, custom projects, and industrial imaging solutions worldwide.
Contact our technical team now to discuss your application.
