$ 1,101.93
Discover the IDS UE-39B1XLS-E event-based camera for ultra-fast motion detection, low-latency analysis, and high-performance imaging in compact embedded systems.

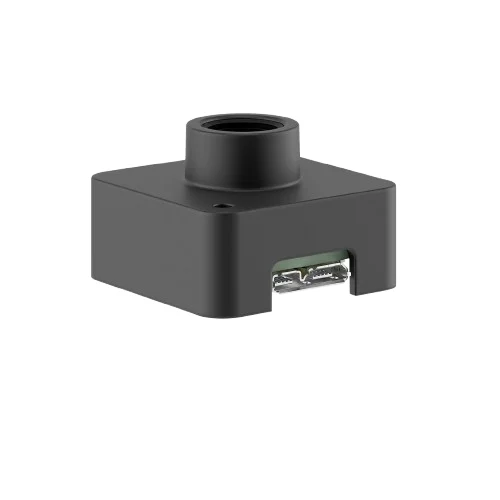

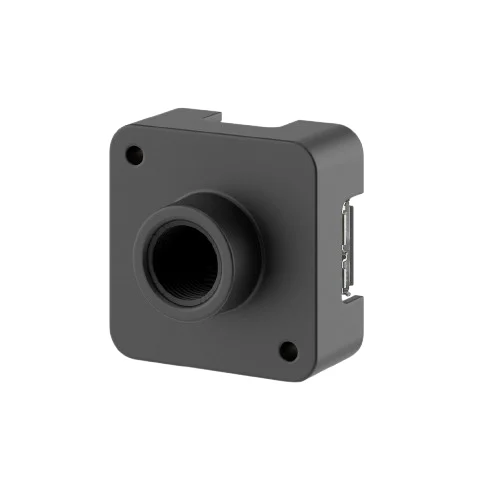

The IDS UE-39B1XLS-E event-based camera is designed for situations where motion must be captured the moment it happens. Using a sensor that reacts only to changes at the pixel level, it avoids the limits of conventional frame-based imaging and removes issues such as motion blur and unnecessary data load. With a 0.92 MP resolution and a compact S-mount housing, it integrates easily into embedded systems, automation setups, and scientific instruments. Its ability to handle rapid activity, changing lighting, and high-speed monitoring makes it a strong choice for applications requiring responsiveness beyond traditional cameras.
The UE-39B1XLS-E converts dynamic activity into efficient event streams that simplify downstream processing. Its logarithmic pixel response supports stable detection under varied lighting, while the event-driven architecture captures subtle motion, vibrations, or flow behavior that standard sensors often miss. This significantly lowers computational requirements at the edge and enables real-time decisions without heavy hardware. The small footprint, low weight, and modest power demand make the camera suitable for mobile platforms, compact robotics, and research environments that require high-speed insight with minimal integration effort.
Why UE-39B1XLS-E?
The UE-39B1XLS-E stands out because it sees motion the instant it happens, not after a frame is captured. Its event-driven sensor architecture turns rapid activity into clean, low-latency data, allowing systems to react with exceptional precision. This makes it ideal for engineers who need a compact, ultra-responsive camera that keeps pace with fast, unpredictable environments.
What problem does it solve?
This model overcomes the limitations of traditional frame-based cameras that struggle with motion blur, heavy data throughput, and delayed reactions. Instead of capturing full frames, it outputs only meaningful changes, solving bottlenecks in high-speed inspection, robotics, research, and edge computing. It enables real-time insight where milliseconds define success or failure.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX636 event-based CMOS sensor | Captures ultra-fast motion with high temporal precision |
| Sensor Type | CMOS Mono with logarithmic response | Maintains stability in challenging or variable lighting |
| Shutter | Event-based, no frame exposure | Zero motion blur and significantly reduced data rates |
| Resolution (H × V) | 1280 × 720 (0.92 MP) | Provides detailed event information for fast scenes |
| Optical Area (H × V) | 6.221 mm × 3.499 mm | Enables precise optical performance with compact lenses |
| Optical Format | 1/2.5″ (7.14 mm diagonal) | Optimized for small, lightweight lens ecosystems |
| Pixel Size | 4.86 µm | Balanced sensitivity and spatial event accuracy |
| Lens Mount | S-Mount (M12) | Ideal for embedded systems requiring minimal footprint |
| Interface | USB 3.0 Micro-B | Easy integration with industrial PCs and edge devices |
| Interface Speed | USB 3.0 bandwidth | Supports high-throughput event data streams |
| Frame Rate @ Max Resolution | Not frame-based; microsecond-level event response | Detects rapid transitions in real time |
| Trigger & Flash I/O | 1.8 V trigger input, SYNC, reset, GPIO | Enables precise synchronization with external systems |
| Power Supply | 5 V USB power; 0.6–3.4 W consumption | Low operational power for portable and embedded platforms |
| Environmental Tolerance | Operating: 0–35°C; Storage: −20–80°C | Suitable for labs, robotics, and controlled industrial use |

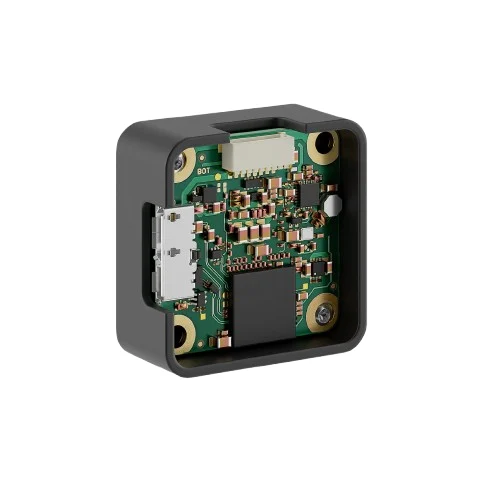

| Housing Protection | PCB-style module (no IP rating) | Perfect for OEM and custom embedded integration |
| Size & Weight | 32.5 × 32.5 × 14.0 mm; 10 g | Extremely compact for installations with tight space constraints |
| Software Tools | Supported by IDS software ecosystem | Speeds up development, testing, and event visualization |
Download UE-39B1XLS-E (1011974) Datasheet
Download UE-39B1XLS-E Technical Drawing
Event-driven cameras are increasingly adopted in mechanical diagnostics where small, rapid movements must be captured without the burden of large video files. The UE-39B1XLS-E is well suited for monitoring motors, rotating shafts, and precision structures because it reports only meaningful changes in motion. This allows engineers to observe micro-vibrations that occur faster than standard imaging systems can track. Its compact size enables placement close to moving components, while its logarithmic response maintains stable output even when surfaces shift between bright and dim lighting during operation, helping to detect early signs of mechanical wear or instability.
In laboratories studying airflow, liquid movement, or dispersed particles, traditional cameras often struggle to record extremely rapid paths without blur. The UE-39B1XLS-E provides a solution by converting every small movement into a clean sequence of events instead of full images. This enables researchers to follow droplets, dust, or bubbles as they accelerate or collide within a test volume. Its low processing load makes real-time calculation of motion patterns possible even on lightweight hardware. This capability supports investigations into turbulence formation, spray behavior, and flow irregularities that are typically too fast for frame-based imaging systems.
Autonomous systems benefit greatly from sensors that react instantly to unexpected changes. The UE-39B1XLS-E gives mobile robots, drones, and compact vehicles the ability to recognize incoming obstacles or sudden shifts in lighting without waiting for full-frame updates. Because it outputs only dynamic information, navigation algorithms receive cleaner, more relevant data, improving reaction speed and path stability. Its small footprint and efficient power use make it easy to integrate into embedded robotic platforms, supporting responsive behaviors such as emergency stopping, rapid direction changes, and adaptive navigation in cluttered or unpredictable spaces.
Production facilities often require detection of faults that appear for only a moment as products move at high speed. The UE-39B1XLS-E excels in these scenarios by reporting sudden changes that could indicate a defect, such as variations in surface texture, shape, or brightness. Motion blur is eliminated due to the event-driven architecture, enabling consistent inspection even when materials move quickly. The reduced data load helps inspection systems operate with simpler hardware while still achieving rapid decision cycles. This benefits industries such as packaging, electronics, and textiles where tight production times demand immediate feedback.
Human gestures can occur too quickly for standard imaging to capture cleanly, especially in systems needing instantaneous responses. The UE-39B1XLS-E is effective for gesture-based interfaces because it focuses on motion rather than static imagery. This allows it to capture flicks, taps, or rapid hand movements that typical cameras may miss. Its logarithmic response stabilizes output despite shifting hand shadows or changes in ambient light. This enables designers of AR/VR interfaces, interactive kiosks, or assistive devices to build more intuitive and responsive control systems without placing heavy computational demands on the host platform.
