$ 1,090.89
High-resolution IDS UE-39B2XLS-E USB3 camera with 12 MP sensor for precise imaging in compact industrial and embedded vision applications. Perfect for high-detail inspection.

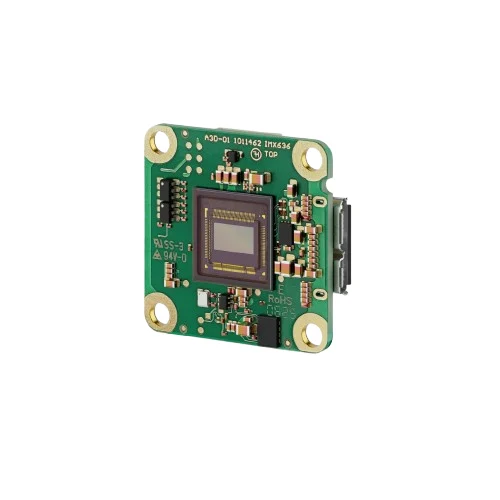

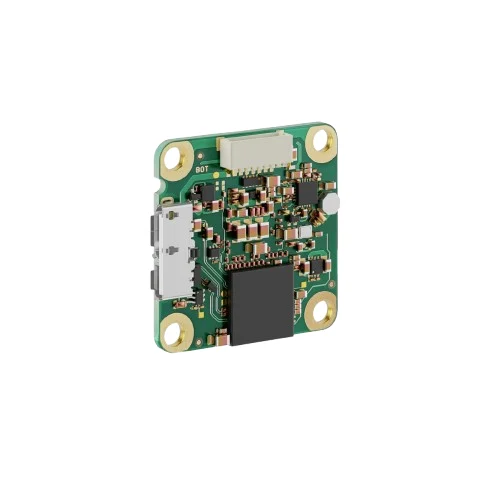

The IDS UE-39B2XLS-E USB3 camera is a compact industrial imaging solution designed to deliver high-resolution 12 MP performance in applications where space is limited but image quality cannot be compromised. Using a refined Sony sensor architecture, it produces detailed, low-noise images suitable for precision inspection, measurement, and automated systems. Its USB3 interface offers fast data transfer and simplified system integration, eliminating the need for specialized frame grabbers. This model addresses the challenge of combining high pixel density, stability, and a small mechanical footprint in modern embedded and industrial environments.
The UE-39B2XLS-E provides integrators with a balance of clarity, speed, and compact design that supports both industrial and scientific workloads. Its 12 MP global-shutter technology helps maintain sharp imaging even when targets move quickly, improving accuracy in processes such as pick-and-place verification, dimensional inspection, and robotics guidance. The small housing allows it to fit into tight machine layouts or portable devices without extensive modification. Broad software compatibility enables rapid deployment on multiple platforms, while its robust sensor performance enhances reliability in fast workflows, making it suitable for long-term production use and advanced OEM systems.
Why UE-39B2XLS-E?
The UE-39B2XLS-E stands out because it delivers 12 MP clarity in one of the smallest industrial camera formats available. It brings high-end imaging performance to places where traditional cameras simply do not fit. Its balance of precision, speed, and compactness makes it a powerful upgrade for OEM devices, embedded designs, and automation systems seeking premium visual accuracy without increasing system size.
What problem does it solve?
This model solves the challenge of capturing fine detail in tight, high-speed environments where space, thermal efficiency, and stable data throughput are critical. It eliminates motion-blur issues, reduces noise in demanding lighting conditions, and removes the complexity of bulky vision hardware. Engineers gain reliable, high-resolution imaging even in compact machines that previously could not support advanced camera technology.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX226, 12 MP | High-fidelity imaging with excellent clarity for inspection and measurement tasks |
| Interface | USB 3.0 (USB3 Vision compliant) | Simple integration without frame grabbers; stable high-speed data transfer |
| Interface Speed | Up to 5 Gbit/s | Ensures smooth transmission of high-resolution image streams |
| Resolution (H x V) | 4000 × 3000 pixels | Captures fine structural details for precise visual analysis |
| Optical Area (H x V) | Approx. 6.4 mm × 4.8 mm | Optimized field coverage for industrial and scientific imaging |
| Optical Format | 1/1.7″ class (approx. 10.4 mm diagonal) | Supports a wide variety of lenses while maintaining image sharpness |
| Lens Mount | S-mount (XLS-E ultra-compact design) | Enables integration into compact devices and embedded systems |
| Pixel Size | 1.85 μm | Delivers high pixel density for detailed and accurate recordings |
| Image Memory | Integrated frame buffer | Improves stability by preventing frame loss in fast applications |
| Frame Rate @ Max Resolution | Up to 20 fps | Suitable for high-detail inspection without sacrificing throughput |
| Shutter Type | Global shutter | Prevents motion artifacts, critical for moving objects or fast automation |
| Exposure Time | Adjustable across wide range | Supports varied lighting conditions from bright to low-light environments |
| Trigger & Flash I/O | Hardware trigger input and strobe control output | Enables synchronized capture with external lighting or motion events |
| Power Supply | Powered through USB (5 V) | Eliminates need for external power supply; simplifies wiring |
| Software Tools | IDS peak SDK, cross-platform support | Accelerates application development for vision systems and OEM devices |
| Environmental Tolerance | Optimized for industrial ambient conditions | Reliable long-term operation in continuous-use environments |
| Housing Protection | Open-frame or compact housing depending on variant | Fits tightly into constrained mechanical designs |
| Size & Weight | Extremely compact XLS-E form factor, lightweight build | Ideal for robotics, embedded vision, and portable instrumentation |
Download UE-39B2XLS-E Datasheet
Download UE-39B2XLS-E Technical Drawing
Modern PCB lines require cameras that can expose extremely small defects before assemblies move to the next process stage. The UE-39B2XLS-E’s 12 MP resolution reveals fine solder structures, pad alignment differences, and micro-cracking that lower-resolution sensors often miss. Its global shutter stabilizes images when conveyors move quickly, preventing smearing around small leads or pins. The compact XLS-E footprint fits easily into confined inspection modules, allowing manufacturers to add detailed imaging without redesigning machines. These advantages improve consistency, reduce rework, and help maintain high first-pass yield in dense electronics production.
Robots handling compact or irregular objects need crisp visual information to make accurate decisions on the fly. The UE-39B2XLS-E produces detailed, low-noise images that help robots identify edges, contours, and subtle surface differences even during rapid arm movement. The lightweight design minimizes the load on small robotic joints, which is essential for stable operation at high speeds. The global shutter ensures the robot receives distortion-free images for precise pose estimation. As a result, integrators gain faster cycle times, more reliable gripping, and improved stability in automated assembly or sorting lines.
Manufacturers of glossy products such as cosmetics packaging, glass components, and polished metals must detect tiny flaws that can easily go unnoticed under uneven lighting. The UE-39B2XLS-E offers the sensitivity and resolution needed to highlight faint scratches, texture anomalies, or coating inconsistencies. Its compact format allows inspectors to position the camera close to the target, reducing distortions that can mislead defect-classification algorithms. The camera’s low noise output also helps lighting systems produce more consistent results. This leads to higher confidence in grading, fewer false rejects, and better overall finish quality.
Laboratories developing new materials or studying small-scale mechanics rely heavily on cameras that can capture fine structural changes without distortion. The UE-39B2XLS-E’s global shutter is particularly effective for experiments where objects vibrate, twist, or move rapidly. Its high pixel count provides the spatial detail necessary for quantitative studies such as deformation tracking, droplet behavior, micro-fracture observation, or particle movement. The small housing integrates well with optical benches, microscopes, and experimental rigs. Researchers gain clearer datasets, improved repeatability, and reduced calibration effort when running long-term or high-speed studies.
Compact medical instruments often incorporate vision modules to verify alignment, inspect test cartridges, or monitor biological samples. The UE-39B2XLS-E is well suited for these environments due to its small enclosure and high-resolution output. The detailed imagery supports tasks such as identifying micro-features in diagnostic strips or tracking moving elements inside fluidic channels. Its global shutter prevents distortion during scanning motions or rapid mechanical shifts. The camera’s size allows OEM designers to embed it into equipment without enlarging housings, enabling more capable diagnostic tools while preserving device portability and ergonomic requirements.
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS Imaging UE-39B2XLS-E – 0.92 MP camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
