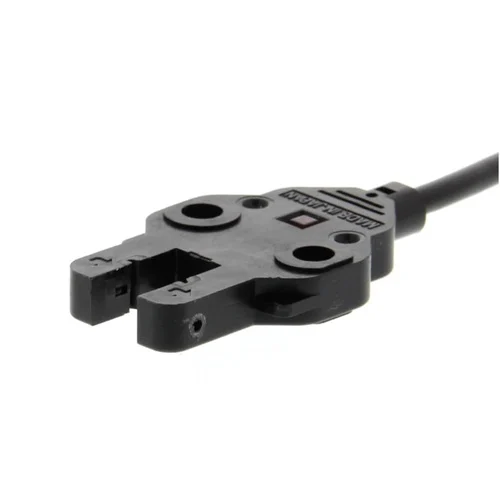

Omron EE-SX770R 2M: standard through-beam photomicrosensor, 5 mm slot, PNP output, 940 nm infrared LED.
The Omron EE-SX770R 2M is a standard slotted through-beam photomicrosensor with a 5 mm slot and PNP open-collector output. Its 940 nm infrared LED detects an opaque object of at least 2 × 0.8 mm. This variant uses a 2 m pre-wired cable and Dark-ON operation.
Omron EE-SX770R 2M: standard through-beam photomicrosensor, 5 mm slot, PNP output, 940 nm infrared LED.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Slotted through-beam photomicrosensor |
| Housing form | Standard |
| Sensing distance | 5 mm (slot width) |
| Standard target | Opaque object, 2 × 0.8 mm min. |
| Differential distance | 0.025 mm |
| Output | PNP open collector; 50 mA max. |
| Light source | GaAs infrared LED, 940 nm |
| Power supply | 5–24 V DC ±10%; 10% p-p ripple max. |
| Current consumption | 12 mA max. |
| Response time | 20 µs max. light-on; 100 µs max. light-interrupted |
| Maximum response frequency | 3 kHz |
| Operation mode | Dark-ON |
| Indicator | Interruption indicator (red) |
| Connection | 2 m pre-wired, 3-core PVC cable |
| Operating temperature | −25 to 55°C |
| Operating humidity | 5–85% RH |
| Physical Weight (kg) | Not stated in the checked manufacturer source. |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked manufacturer source. |
Engineering suggestions require suitability checks for your installation.
Detect small opaque parts as they pass through a compact mechanism.
Position the object through the 5 mm slot and verify alignment, target opacity and switching timing.
Read a moving flag or interrupter in a machine mechanism or assembly fixture.
Choose the standard body form for mounting access and connect the PNP output to a compatible input.
