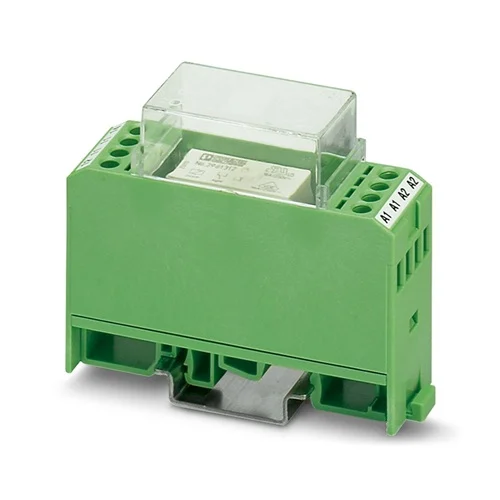

Phoenix Contact EMG 22-REL/KSR-230/21 Relay Module

Phoenix Contact EMG 22-REL/KSR-230/21 Relay Module – Reliable 230V Switching

The Phoenix Contact EMG 22-REL/KSR-230/21 relay module provides dependable switching for medium to large electrical loads in automation and control systems. It incorporates a miniature relay with a single changeover contact, ensuring stable performance at 230 V AC/DC. With built-in isolation between coil and contact sides, it enhances safety and reliability in demanding environments. The compact design saves valuable panel space, while its integrated interference suppression supports consistent operation. This module is ideally suited for industrial applications where secure switching, durability, and ease of integration are essential requirements.

Engineers benefit from the Phoenix Contact EMG 22-REL/KSR-230/21 thanks to its reinforced insulation and 6 kV separation, protecting sensitive equipment and meeting strict industrial standards. Its slim 22.5 mm width allows efficient DIN rail installation, even in crowded control cabinets. A built-in LED indicator gives clear status feedback, simplifying troubleshooting and minimizing downtime. Capable of switching currents up to 6 A, it is well suited for driving motors, heating elements, and power circuits. With a long mechanical lifespan and low energy consumption, this relay module offers a safe, efficient, and cost-effective solution for long-term industrial switching needs.

Why Phoenix Contact EMG 22-REL/KSR-230/21?

The Phoenix Contact EMG 22-REL/KSR-230/21 relay module is the go-to choice for engineers who need reliability and safety in one compact device. It combines secure electrical isolation, low power consumption, and simple DIN rail installation with a long service life. With its built-in LED indicator and interference suppression, it makes system monitoring effortless while keeping industrial equipment stable and protected.

What Problem Does It Solve?

The EMG 22-REL/KSR-230/21 relay module eliminates the risk of unstable switching in high-demand environments. It solves challenges such as unreliable contact separation, space restrictions in control cabinets, and downtime caused by poor diagnostics. By offering 6 kV reinforced insulation, compact housing, and clear operational feedback, it ensures safe, efficient switching of motors, heaters, and control circuits—reducing failures and improving overall system performance.

Here’s a rich-result optimized table for your product page, designed for SEO and user readability. I’ve included the must-have fields (GTIN, tariff number, weight, country of origin) and added advanced technical specs to make it commercially appealing.

Key Features & Specifications – Phoenix Contact EMG 22-REL/KSR-230/21 : Article Number 2952855

Download Phoenix Contact EMG 22-REL/KSR-230/21 – 2952855 Datasheet

Commercial Information – Phoenix Contact EMG 22-REL/KSR-230/21 : Article Number 2952855

The Applications of Phoenix Contact EMG 22-REL/KSR-230/21

1. Precision in Packaging Machinery

Modern packaging machines rely on accurate timing to cut, seal, or fill products. The EMG 22-REL/KSR-230/21 relay module ensures reliable switching when sensors detect items moving at high speeds. Its rapid response time and reinforced insulation protect sensitive controllers while driving actuators and motors safely at 230 V. This prevents misalignment or product waste caused by delayed activation. With compact housing, multiple relays can fit into one panel, supporting synchronized operations. Maintenance crews also benefit from the built-in LED indicator, which shows real-time switching status, reducing troubleshooting time during production runs and keeping packaging throughput consistently high.

2. Climate and Ventilation Control

Heating, ventilation, and air-conditioning systems in commercial facilities often require safe switching of fans, compressors, or heating coils. The EMG 22-REL/KSR-230/21 provides a secure interface between control electronics and high-voltage devices, preventing faults from reaching delicate thermostats or controllers. Its 6 kV reinforced insulation guarantees safety against electrical surges while operating in varying temperatures. Thanks to the module’s slim 22.5 mm width, engineers can mount several relays within a single cabinet to control multiple HVAC functions. This compact design allows energy-efficient climate management, with reliable switching that ensures comfort levels remain stable across office buildings, hospitals, and industrial sites.

3. Conveyor and Material Handling Systems

Conveyors require frequent motor start and stop commands that must handle both continuous loads and short bursts of inrush current. The EMG 22-REL/KSR-230/21 relay module is engineered to manage up to 6 A of current, making it a reliable solution for controlling belt drives, sorters, and automated pick-and-place machines. Its fast switching minimizes system lag, while built-in suppression circuitry reduces electrical noise that can disrupt sensors. The yellow LED indicator allows maintenance teams to confirm switching states quickly, lowering downtime during inspections. Compact size and DIN rail mounting simplify integration, enabling efficient control of multiple conveyor lines in busy factories.

4. Renewable Energy Management

In renewable energy installations, such as solar or small wind systems, switching between sources, storage units, or backup supplies is crucial. The EMG 22-REL/KSR-230/21 provides the necessary safety margin with reinforced isolation, preventing unwanted voltage spikes from damaging sensitive equipment. Its wide operating voltage range ensures stable performance even with fluctuating input conditions common in renewable setups. By occupying minimal panel space, the relay supports compact inverter and control cabinets. The long mechanical service life extends system reliability, while the LED status display helps technicians monitor switching events at a glance, ensuring continuous, efficient distribution of renewable energy resources.
