USD 191.10
Straight M26 twelve-pin female connector to flying leads, 10 m unshielded black PVC cable, 0.75 mm² conductors, 5 A, ≤60 V AC/DC and IP65 protection.

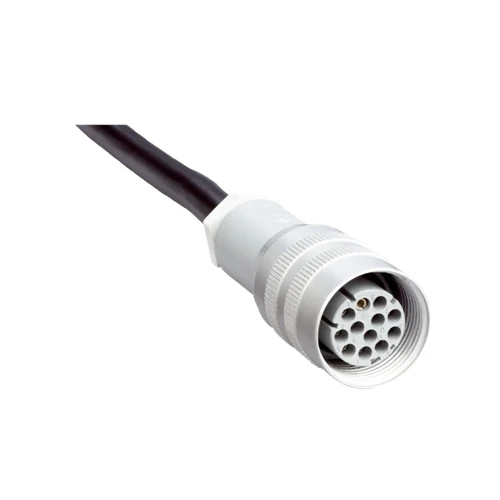

The SICK DOL-0612G10M075KM0 is an unshielded 10 m sensor/actuator cable with a straight M26 twelve-pin female connector and flying leads. Its black twelve-wire PVC cable uses 0.75 mm² conductors, with a gray/silver PET connector and IP65 protection to EN 60529.
Unshielded 10 m twelve-wire PVC sensor/actuator cable with straight M26 twelve-pin female connector, flying leads and 0.75 mm² conductors.
Connect an M26 twelve-pin device to individual field wiring using a 10 m PVC cable with documented conductor colors and a PE contact.
| Parameter | Value |
|---|---|
| Product type | Sensor/actuator connection cable |
| Head A | Female M26 twelve-pin, straight |
| Head B | Flying leads |
| Connector material | PET |
| Connector color | Gray, silver |
| Cable length | 10 m |
| Cable construction | Twelve-wire unshielded PVC |
| Jacket color | Black |
| Cable diameter | 10 mm |
| Conductor cross-section | 0.75 mm² |
| Reference voltage | ≤60 V AC/DC |
| Current loading | 5 A |
| IP rating | IP65 to EN 60529 |
| Operating temperature, flexible | −5 to +80 °C |
| Operating temperature, stationary | −30 to +80 °C |
| Operating temperature, head | −40 to +90 °C |
| Contact colors | PE=green; 1=brown; 2=blue; 3=gray; 4=pink; 5=red; 6=yellow; 7=white; 8=red-blue; 9=black; 10=violet; 11=gray-pink |
| Connector interface in drawing | M26 ×1.5; PG11; SW22 and SW19 |
| Connector-only drawing | 79 mm full connector axial span; 41 mm front-section span; Ø28 mm coupling |
