USD 62.40
Shielded 10 m seven-wire halogen-free PUR cable with straight A-coded M12 eight-pin female connector, flying leads, 2 A rating and IP65/IP67 protection.

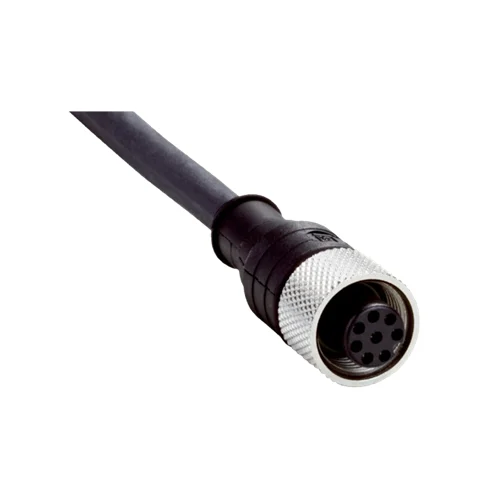

The SICK DOL-127SG10ME25KM0 is a shielded 10 m sensor/actuator cable with a straight A-coded M12 eight-pin female connector and flying leads. Seven 0.25 mm² conductors and a shield connection provide the documented wiring arrangement, with a halogen-free PUR jacket and IP65/IP67 protection.
Shielded 10 m seven-wire PUR sensor/actuator cable with straight A-coded M12 eight-pin female connector, flying leads and a dedicated shield connection.
Connect an eight-pin A-coded M12 interface to individual wiring with seven conductors and a shield connection in a 10 m halogen-free PUR cable.
| Parameter | Value |
|---|---|
| Product type | Sensor/actuator connection cable |
| Head A | Female M12 eight-pin, straight, A-coded |
| Head B | Flying leads |
| Cable length | 10 m |
| Cable construction | Seven-wire, shielded, halogen-free PUR |
| Jacket color | Black |
| Cable diameter | 6 mm |
| Conductor cross-section | 0.25 mm² |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | CuZn, nickel-plated brass |
| Bending radius, flexible | >10 × cable diameter |
| Bending radius, stationary | >5 × cable diameter |
| Bending cycles | >2,000,000 |
| Reference voltage | ≤30 V |
| Current loading | 2 A |
| Traversing speed | 3.3 m/s |
| Acceleration | ≤5 m/s² |
| UL file | CYJV.E335179 |
| IP rating | IP65/IP67 to EN 60529 |
| Operating temperature, flexible | −25 to +80 °C |
| Operating temperature, stationary | −50 to +80 °C |
| Operating temperature, drag chain | −25 to +60 °C |
| Operating temperature, head | −25 to +80 °C |
| Pin colors and shield | 1 WH=white; 2 BN=brown; 3 GN=green; 4 YE=yellow; 5 GY=gray; 6 PK=pink; 7 BU=blue; 8=shield |
| Connector-only drawing | 42 mm axial span; Ø14.8 mm outer envelope; M12 interface |
