SICK 2031073 DOL-2308-G15MJB2 15 m M23 HIPERFACE Cable

USD 300.56

Shielded 15 m eight-wire halogen-free PUR cable, straight M23 12-pin female connector to flying leads, 7 A loading and separate flex/static limits.

SKU SICK-2031073 Category
SICK Plug Connectors And Cables

SICK DOL-2308-G15MJB2 15 m M23 HIPERFACE Cable

BrandSICK
Model IdentifierDOL-2308-G15MJB2
Official Part Number2031073

Technical Overview

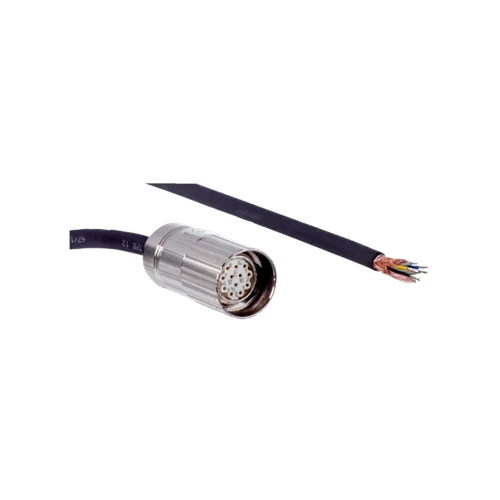

The SICK DOL-2308-G15MJB2 is a shielded 15 m HIPERFACE connecting cable with a straight M23 12-pin female connector and eight flying-lead conductors. Its black halogen-free PUR jacket, TPU connector and nickel-plated brass locking nut accompany separate bending-radius and temperature limits for flexible and stationary installation.

Shielded 15 m eight-wire HIPERFACE cable with straight M23 12-pin female connector, flying leads and black halogen-free PUR jacket.

Key Features

  • 15 m HIPERFACE connecting cable
  • Straight M23 12-pin female connector to flying leads
  • Eight-wire, shielded construction
  • Black halogen-free PUR cable jacket; Ø5.3 mm cable
  • Black TPU connector with nickel-plated brass locking nut
  • Flexible bend radius >15 × cable diameter; stationary >5 × diameter
  • 7 A current loading; reference voltage ≤160 V
  • IP66/IP67; documented use in zones with oils and lubricants
  • Flexible temperature −30 to +90 °C; stationary −20 to +130 °C

Connect a compatible HIPERFACE interface to individual wiring through a shielded 15 m PUR cable with an M23 female connector.

Technical Specification Matrix

ParameterValue
Accessory typeHIPERFACE connecting cable
Signal typeHIPERFACE
Head AFemale M23 12-pin, straight
Head BFlying leads
Cable length15 m
Conductor countEight
Jacket material and colorBlack halogen-free PUR
Cable diameter5.3 mm
ShieldingShielded
Connector material and colorBlack TPU
Locking nut materialNickel-plated brass
Minimum bend radiusFlexible: >15 × cable diameter; stationary: >5 × cable diameter
Reference voltage≤160 V
Current loading7 A
Listed installation areaZones with oils and lubricants
IP ratingIP66/IP67
Operating temperature, flexible−30 to +90 °C
Operating temperature, stationary−20 to +130 °C
Pin colors1 black; 2 gray; 5 white; 6 brown; 7 green; 8 pink; 10 blue; 12 red
Unconnected positions3, 4, 9 and 11: N.C.
Connector-only drawingApproximately 55 mm length; 26 mm transverse span; 23 mm wrench size
