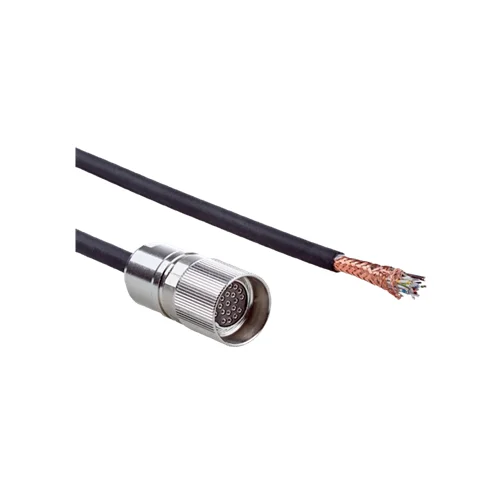

SICK 2029218 DOL-2321-G1M5PA4 1.5 m M23 Parallel Encoder Cable

USD 212.94

Straight M23 21-pin female connector to flying leads, with a shielded 1.5 m 22-wire halogen-free PUR cable, parallel signal type and IP66/IP67.

SKU SICK-2029218 Category
SICK Plug Connectors And Cables

SICK DOL-2321-G1M5PA4 1.5 m M23 Parallel Encoder Cable

BrandSICK
Model IdentifierDOL-2321-G1M5PA4
Official Part Number2029218

Technical Overview

The SICK DOL-2321-G1M5PA4 is a shielded 1.5 m parallel-signal connection cable with a straight M23 21-pin female connector and flying leads. Its black halogen-free PUR cable contains twenty 0.15 mm² and two 0.5 mm² conductors, with a TPU connector and nickel-plated brass locking nut.

Shielded 1.5 m 22-wire halogen-free PUR parallel-signal cable with straight M23 21-pin female connector, flying leads and IP66/IP67 protection.

Key Features

  • Straight M23 21-pin female connector to flying leads
  • 1.5 m shielded 22-wire cable for parallel signals
  • Black halogen-free PUR jacket; 7.8 mm cable diameter
  • Twenty 0.15 mm² and two 0.5 mm² conductors
  • Black TPU connector with nickel-plated brass locking nut
  • Reference voltage ≤160 V; current loading 7 A
  • Stationary bending radius >5 cable diameters
  • Manufacturer-listed use in zones with oils and lubricants
  • IP66/IP67; flexible temperature −30 to +90 °C; stationary −20 to +130 °C

Connect a compatible parallel-signal encoder to individual field wiring with a shielded 1.5 m PUR cable and M23 21-pin female connector.

Technical Specification Matrix

ParameterValue
Product typeParallel-signal connection cable
Head AStraight M23 21-pin female connector
Head BFlying leads
Connector material and colorBlack TPU
Locking nut materialNickel-plated brass
Cable length1.5 m
Number of conductors22
Jacket material and colorBlack halogen-free PUR
Cable diameter7.8 mm
Conductor cross-sections20 ×0.15 mm² + 2 ×0.5 mm²
ShieldingShielded
Bending radius, stationary>5 × cable diameter
Reference voltage≤160 V
Current loading7 A
Signal typeParallel
Manufacturer application areasZones with oils and lubricants
IP ratingIP66 / IP67
Operating temperature, flexible−30 to +90 °C
Operating temperature, stationary−20 to +130 °C
Connector-only drawingApproximately 62 mm axial span; Ø26 mm; wrench width 23
