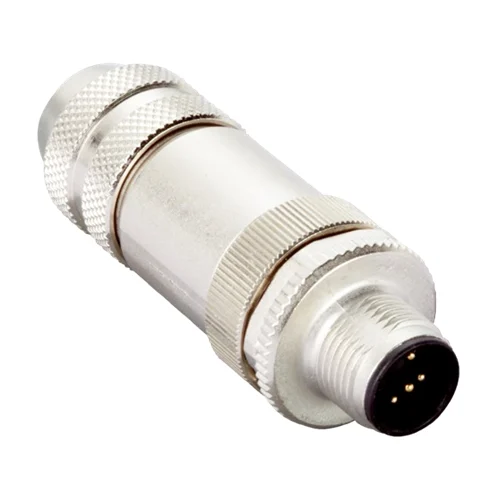

SICK 6048261 STE-1204-GZ D-Coded M12 Field-Wireable Connector

USD 41.34

Straight D-coded M12 four-pin male connector for shielded CAT5/CAT5e PROFINET wiring, with IDC termination, 4–8 mm cable acceptance and IP67.

SKU SICK-6048261 Category
SICK Plug Connectors And Cables

SICK STE-1204-GZ D-Coded M12 Field-Wireable Connector

BrandSICK
Model IdentifierSTE-1204-GZ
Official Part Number6048261

Technical Overview

The SICK STE-1204-GZ is a straight D-coded M12 four-pin male connector for shielded CAT5/CAT5e PROFINET wiring. IDC quick termination and a quick screw connection accept 4–8 mm cable with 0.14–0.34 mm² conductors; the die-cast zinc locking nut and IP67 head are specified for −40 to +85 °C.

Shielded D-coded M12 four-pin male field-wireable connector with IDC termination for CAT5/CAT5e PROFINET cable.

Key Features

  • Straight M12 four-pin male connector; D-coded
  • IDC quick cable termination
  • Quick screw locking connection
  • Die-cast zinc locking nut
  • Shielded CAT5/CAT5e cable; PROFINET signal type
  • Accepts 4–8 mm cable and 0.14–0.34 mm² conductors
  • Reference voltage ≤60 V; current loading 1.75 A
  • IP67; head operating temperature −40 to +85 °C
  • 61 mm overall connector axis; maximum Ø19 mm body in drawing

Terminate a shielded CAT5/CAT5e PROFINET cable at a D-coded M12 male interface using IDC contacts and the quick screw connection.

Technical Specification Matrix

ParameterValue
Connector typeMale connector, M12, four-pin, straight, D-coded
TerminationIDC quick connection
Locking connectionQuick screw connection
Locking nut materialDie-cast zinc
Cable categoriesCAT5; CAT5e
ShieldingShielded
Permitted cable diameter4–8 mm
Permitted conductor cross-section0.14–0.34 mm²
Reference voltage≤60 V
Current loading1.75 A
Signal typePROFINET
IP ratingIP67
Head operating temperature−40 to +85 °C
Wrench sizesSW13 and SW16 in manufacturer drawing
Cable preparationInstallation drawing: 35 mm outer preparation, 11 mm shield-end section and 3 mm final trimming detail
Dimensions L x W x H (cm)6.1 x 1.9 x 1.9
