USD 70.72
5 m shielded eight-wire PUR cable with straight M12 eight-pin female connector, flying leads, 0.25 mm² conductors and drag-chain operation rating.

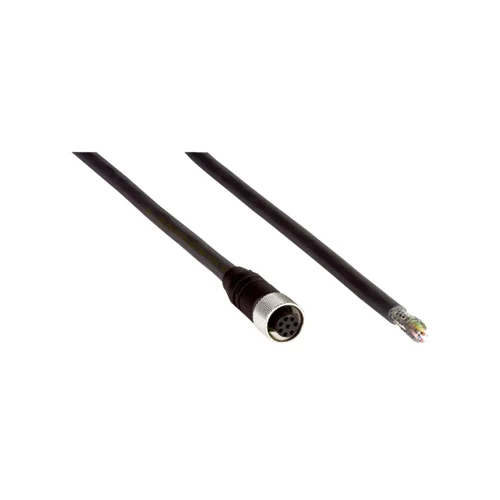

The SICK YF2A68-050XXXXLEAX is a 5 m shielded sensor/actuator cable with a straight M12 eight-pin female connector and flying leads. Its black halogen-free PUR jacket encloses eight 0.25 mm² conductors. The manufacturer specifies drag-chain operation, oil/lubricant zones, more than two million bending cycles and IP67 protection.
5 m shielded halogen-free PUR cable with straight M12 eight-pin female connector, flying leads and drag-chain operation rating.
Connect a compatible eight-pin M12 device to flying-lead field wiring using a shielded PUR cable specified for drag-chain operation.
| Parameter | Value |
|---|---|
| Product type | Sensor/actuator connection cable |
| Head A | Female connector, M12, eight-pin, straight |
| Head B | Flying leads |
| Cable length | 5 m |
| Number of wires | 8 |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 7 mm |
| Conductor cross-section | 0.25 mm² |
| Shielding | Shielded |
| Bending radius, flexible | >10 × cable diameter |
| Bending radius, stationary | >5 × cable diameter |
| Bending cycles | >2,000,000 |
| Current loading | 4 A |
| Traversing speed | 3.3 m/s |
| Travelling distance | 5 m |
| Acceleration | ≤5 m/s² |
| Manufacturer application areas | Drag-chain operation; zones with oils and lubricants |
| IP rating | IP67 |
| Connector thread | M12 × 1 |
| Connector body drawing length | 43 mm |
| Connector drawing diameter | 14.5 mm |
| Pin colors | 1=white; 2=brown; 3=green; 4=yellow; 5=gray; 6=pink; 7=blue; 8=red |
