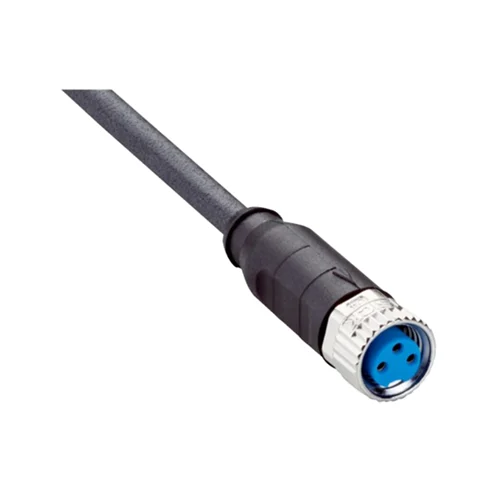

SICK 2094782 YF8U13-020UA1XLEAX M8 Sensor/Actuator Cable

USD 19.50

2 m unshielded three-wire halogen-free PUR cable with straight A-coded M8 female connector, flying leads, 0.25 mm² conductors and drag-chain ratings.

SKU SICK-2094782 Category
SICK Plug Connectors And Cables

SICK YF8U13-020UA1XLEAX M8 Sensor/Actuator Cable

BrandSICK
Model IdentifierYF8U13-020UA1XLEAX
Official Part Number2094782

Technical Overview

The SICK YF8U13-020UA1XLEAX is a 2 m unshielded sensor/actuator cable with a straight A-coded M8 three-pin female connector and flying leads. Its black halogen-free PUR cable uses 0.25 mm² conductors, while a screw connection, nickel-plated zinc die-cast nut and FKM seal secure the TPU connector for documented drag-chain and robotic use.

2 m unshielded three-wire halogen-free PUR cable with straight A-coded M8 female connector, flying leads and documented drag-chain and torsion ratings.

Key Features

  • 2 m three-wire sensor/actuator cable; flying leads at head B
  • Straight A-coded M8 three-pin female connector; screw locking
  • Black halogen-free PUR jacket; Ø4.1 mm cable; 0.25 mm² conductors
  • Black TPU connector; FKM seal; nickel-plated zinc die-cast locking nut
  • 0.4 Nm tightening torque; 4 A loading; reference 50 V AC / 60 V DC
  • Flexible and drag-chain bend radius >10 cable diameters; stationary >5 diameters
  • 10 million bending cycles; 3 m/s travel, 10 m travel distance, acceleration ≤10 m/s²
  • Torsion 180° per metre; 2 million torsion cycles; 35 cycles per minute
  • IP65/IP66K/IP67; flexible and drag-chain −25 to +80 °C; stationary −40 to +80 °C
  • Documented use in drag chains, oil/lubricant zones and robots

Connect a compatible M8 three-pin device to flying-lead wiring with a screw-locked PUR assembly rated for documented bending and torsional motion.

Technical Specification Matrix

ParameterValue
Product typeSensor/actuator connection cable
Head AFemale connector, M8, three-pin, straight, A-coded
Head BFlying leads
LockingScrew connection
Connector material and colorBlack TPU
Locking nut materialNickel-plated zinc die-cast
Seal materialFKM
Tightening torque0.4 Nm
Width across flats9
Cable length2 m
Number of wires3
Jacket material and colorBlack halogen-free PUR
Cable diameter4.1 mm
Conductor cross-section0.25 mm²
ShieldingUnshielded
Bending radiusFlexible and drag-chain >10 × cable diameter; stationary >5 × cable diameter
Bending cycles10,000,000
Cable nominal voltage300 V AC
Cable test voltage2,500 V AC
Reference voltage50 V AC; 60 V DC
Rated impulse voltage1.5 kV
Current loading4 A
Traversing speed3 m/s
Travelling distance10 m
Acceleration≤10 m/s²
Torsion rating180° per 1 m; 2,000,000 torsion cycles; 35 cycles per minute
Manufacturer application areasDrag-chain operation; oil and lubricant zones; robots
UL fileE335179
IP ratingIP65 / IP66K / IP67
Operating temperature, flexible−25 to +80 °C
Operating temperature, stationary−40 to +80 °C
Operating temperature, drag chain−25 to +80 °C
Operating temperature, head−25 to +85 °C
Contamination rating3
Insulation resistance100 MΩ
Overvoltage categoryIII
Flame retardanceUL 1581 horizontal flame test; CSA FT2; IEC 60332-1 and IEC 60332-2-2
Pin colors1=BN; 3=BU; 4=BK
