USD 23.40
5 m unshielded three-wire halogen-free PUR cable with straight A-coded M8 female connector, flying leads, 0.25 mm² conductors and drag-chain ratings.

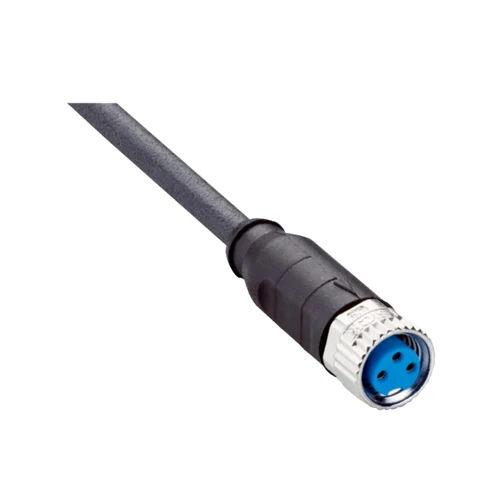

The SICK YF8U13-050UA1XLEAX is a 5 m unshielded sensor/actuator cable with a straight A-coded M8 three-pin female connector and flying leads. Its black halogen-free PUR cable uses 0.25 mm² conductors, while a screw connection, nickel-plated zinc die-cast nut and FKM seal secure the TPU connector for documented drag-chain and robotic use.
5 m unshielded three-wire halogen-free PUR cable with straight A-coded M8 female connector, flying leads and documented drag-chain and torsion ratings.
Connect a compatible M8 three-pin device to flying-lead wiring with a screw-locked PUR assembly rated for documented bending and torsional motion.
| Parameter | Value |
|---|---|
| Product type | Sensor/actuator connection cable |
| Head A | Female connector, M8, three-pin, straight, A-coded |
| Head B | Flying leads |
| Locking | Screw connection |
| Connector material and color | Black TPU |
| Locking nut material | Nickel-plated zinc die-cast |
| Seal material | FKM |
| Tightening torque | 0.4 Nm |
| Width across flats | 9 |
| Cable length | 5 m |
| Number of wires | 3 |
| Jacket material and color | Black halogen-free PUR |
| Cable diameter | 4.1 mm |
| Conductor cross-section | 0.25 mm² |
| Shielding | Unshielded |
| Bending radius | Flexible and drag-chain >10 × cable diameter; stationary >5 × cable diameter |
| Bending cycles | 10,000,000 |
| Cable nominal voltage | 300 V AC |
| Cable test voltage | 2,500 V AC |
| Reference voltage | 50 V AC; 60 V DC |
| Rated impulse voltage | 1.5 kV |
| Current loading | 4 A |
| Traversing speed | 3 m/s |
| Travelling distance | 10 m |
| Acceleration | ≤10 m/s² |
| Torsion rating | 180° per 1 m; 2,000,000 torsion cycles; 35 cycles per minute |
| Manufacturer application areas | Drag-chain operation; oil and lubricant zones; robots |
| UL file | E335179 |
| IP rating | IP65 / IP66K / IP67 |
| Operating temperature, flexible | −25 to +80 °C |
| Operating temperature, stationary | −40 to +80 °C |
| Operating temperature, drag chain | −25 to +80 °C |
| Operating temperature, head | −25 to +85 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Flame retardance | UL 1581 horizontal flame test; CSA FT2; IEC 60332-1 and IEC 60332-2-2 |
| Pin colors | 1=BN; 3=BU; 4=BK |
