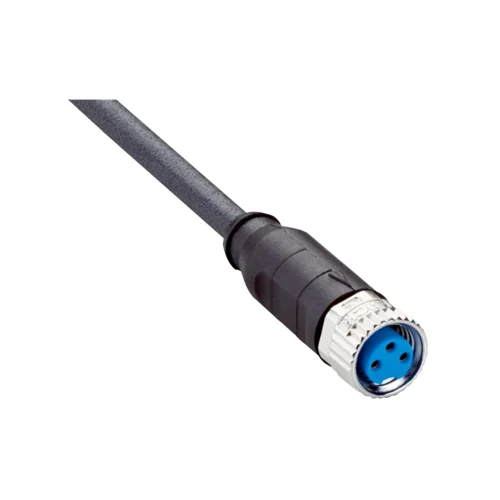

SICK 2094789 YF8U13-100UA1XLEAX 10 m M8 PUR Sensor Cable

USD 31.20

Unshielded 10 m three-wire PUR cable with straight A-coded M8 female connector, flying leads, 0.25 mm² conductors, 4 A rating and drag-chain data.

SKU SICK-2094789 Category
SICK Plug Connectors And Cables

SICK YF8U13-100UA1XLEAX 10 m M8 PUR Sensor Cable

BrandSICK
Model IdentifierYF8U13-100UA1XLEAX
Official Part Number2094789

Technical Overview

The SICK YF8U13-100UA1XLEAX is an unshielded 10 m sensor/actuator cable with a straight A-coded M8 three-pin female connector and flying leads. Its halogen-free PUR jacket, 0.25 mm² conductors and documented bending and torsion data support the listed drag-chain, lubricant-zone and robot installations.

Unshielded 10 m three-wire halogen-free PUR cable with straight M8 three-pin female connector, flying leads and 0.25 mm² conductors.

Key Features

  • Straight A-coded M8 three-pin female connector to flying leads
  • 10 m three-wire black halogen-free PUR cable; unshielded
  • 0.25 mm² conductors; Ø4.1 mm cable
  • TPU connector, FKM seal and nickel-plated zinc die-cast locking nut
  • Screw connection, 0.4 Nm tightening torque and 9 mm wrench size
  • 4 A current loading; assembly reference 50 V AC / 60 V DC
  • 10,000,000 bending cycles; 2,000,000 torsion cycles
  • Documented drag-chain and robot use with speed, travel and acceleration limits
  • IP65/IP66K/IP67; different flexible, stationary and head temperature limits

Connect an M8 sensor or actuator to individual wiring with a 10 m PUR cable whose documented bending and torsion data support moving installations.

Technical Specification Matrix

ParameterValue
Accessory typeSensor/actuator connecting cable
Head AFemale M8 three-pin, straight, A-coded
Head BFlying leads
Connector lockingScrew connection
Connector material and colorBlack TPU
Locking nutNickel-plated zinc die-cast
SealFKM
Tightening torque0.4 Nm
Width across flats9 mm
Cable length10 m
Cable constructionThree-wire, unshielded, halogen-free PUR; black jacket
Conductor cross-section0.25 mm²
Cable diameter4.1 mm
Bend radiusFlexible and drag-chain: >10 × cable diameter; stationary: >5 × cable diameter
Bending cycles10,000,000
Cable-only nominal voltage300 V AC
Cable-only test voltage2,500 V AC
Assembly reference voltage50 V AC / 60 V DC
Rated impulse voltage1.5 kV
Current loading4 A
Traversing speed3 m/s
Travelling distance10 m
Acceleration≤10 m/s²
Torsion180° per 1 m; 2,000,000 cycles; 35 cycles/min
Listed installation areasDrag-chain operation; zones with oils and lubricants; robot
IP ratingIP65/IP66K/IP67
Operating temperature, flexible and drag chain−25 to +80 °C
Operating temperature, stationary cable−40 to +80 °C
Operating temperature, head−25 to +85 °C
Contamination rating3
Insulation resistance100 MΩ
Overvoltage categoryIII
Flame resistanceUL 1581 horizontal flame test / CSA FT2 / IEC 60332-1 and IEC 60332-2-2
UL fileE335179
Pin colors1 BN=brown; 3 BU=blue; 4 BK=black
Connector drawingM8 ×1 thread; 32 mm connector length; Ø10 mm maximum connector diameter; 20 mm exposed lead end
