Unshielded 5 m four-wire PUR cable with straight A-coded M8 female connector, flying leads, 0.25 mm² conductors, 4 A rating and drag-chain data.

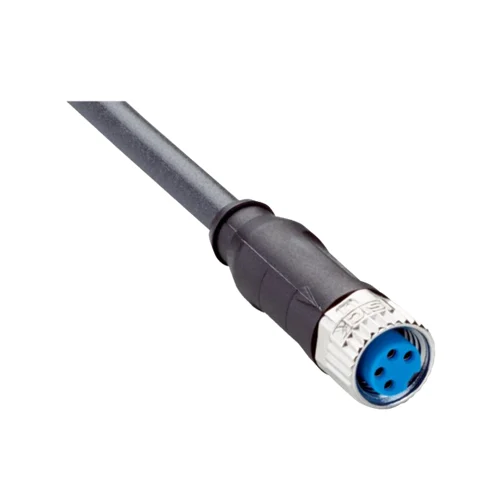

The SICK YF8U14-050UA3XLEAX is an unshielded 5 m sensor/actuator cable with a straight A-coded M8 four-pin female connector and flying leads. Its halogen-free PUR jacket, 0.25 mm² conductors and documented bending and torsion data support the listed drag-chain, lubricant-zone and robot installations.
Unshielded 5 m four-wire halogen-free PUR cable with straight M8 four-pin female connector, flying leads and 0.25 mm² conductors.
Connect an M8 sensor or actuator to individual wiring with a 5 m PUR cable whose documented bending and torsion data support moving installations.
| Parameter | Value |
|---|---|
| Accessory type | Sensor/actuator connecting cable |
| Head A | Female M8 four-pin, straight, A-coded |
| Head B | Flying leads |
| Connector locking | Screw connection |
| Connector material and color | Black TPU |
| Locking nut | Nickel-plated zinc die-cast |
| Seal | FKM |
| Tightening torque | 0.4 Nm |
| Width across flats | 9 mm |
| Cable length | 5 m |
| Cable construction | Four-wire, unshielded, halogen-free PUR; black jacket |
| Conductor cross-section | 0.25 mm² |
| Cable diameter | 4.5 mm |
| Bend radius | Flexible and drag-chain: >10 × cable diameter; stationary: >5 × cable diameter |
| Bending cycles | 10,000,000 |
| Cable-only nominal voltage | 300 V AC |
| Cable-only test voltage | 2,500 V AC |
| Assembly reference voltage | 50 V AC / 60 V DC |
| Rated impulse voltage | 1.5 kV |
| Current loading | 4 A |
| Traversing speed | 3 m/s |
| Travelling distance | 10 m |
| Acceleration | ≤10 m/s² |
| Torsion | 180° per 1 m; 2,000,000 cycles; 35 cycles/min |
| Listed installation areas | Drag-chain operation; zones with oils and lubricants; robot |
| IP rating | IP65/IP66K/IP67 |
| Operating temperature, flexible and drag chain | −25 to +80 °C |
| Operating temperature, stationary cable | −40 to +80 °C |
| Operating temperature, head | −25 to +85 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Flame resistance | UL 1581 horizontal flame test / CSA FT2 / IEC 60332-1 and IEC 60332-2-2 |
| UL file | E335179 |
| Pin colors | 1 BN=brown; 2 WH=white; 3 BU=blue; 4 BK=black |
| Connector drawing | M8 ×1 thread; 32 mm connector length; Ø10 mm maximum connector diameter; 20 mm exposed lead end |
