1. High-Speed Logistics Barcode Scanning System
Integration into over-the-belt machine vision systems for identifying and decoding barcodes on moving packages of highly variable heights and dimensions.
Problem SolvedTraditional mechanical lenses cannot refocus fast enough for high-throughput conveyors with mixed-size packages, leading to read failures. The integrated liquid lens enables milliseconds-fast electronic focus adjustment to adapt to varying package heights, while the 5.00 MP resolution and 2.74 µm minimal pixel pitch ensure fine print and high-density barcodes are resolved sharply from as close as 0.10 m.
Integrated liquid lensResolution 5.00 MPMinimal pixel pitch 2.74 µmMinimal object distance (M.O.D.) 0.10 m
2. Multi-Level PCB Automated Optical Inspection (AOI)
Usage in inline AOI machinery to rapidly inspect densely populated printed circuit boards containing both low-profile traces and tall surface-mounted components.
Problem SolvedInspecting multiple height planes on complex PCBs usually requires moving the camera head mechanically in the z-axis, which severely slows down inspection throughput. The integrated liquid lens allows for instantaneous focal shifts (focus stacking) without any moving parts. Combined with the 6.0 mm focal length and a 1/2" image circle, the system captures a wide field of view (60.8° x 45.6°) to evaluate large sections of the board instantly.
Integrated liquid lensFocal length 6.0 mmAngle of view (HxVxD) 60.8° x 45.6° x 75.8°Maximal image circle 1/2"
3. Dynamic Robotic Bin Picking Vision
Arm-mounted vision sensor deployment for industrial robots performing dynamic bin-picking tasks, where the distance to the target continuously changes as the arm moves.
Problem SolvedEnd-of-arm tooling requires highly compact, lightweight optics capable of active focusing as the robotic arm plunges into deep, variable-height bins. Mechanical motorized lenses add bulky weight and are prone to vibration damage. The compact M12 form factor with an integrated liquid lens eliminates mechanical wear and minimizes payload weight. Furthermore, the fast 2.4 aperture maximizes light intake in shadowed industrial bin environments.

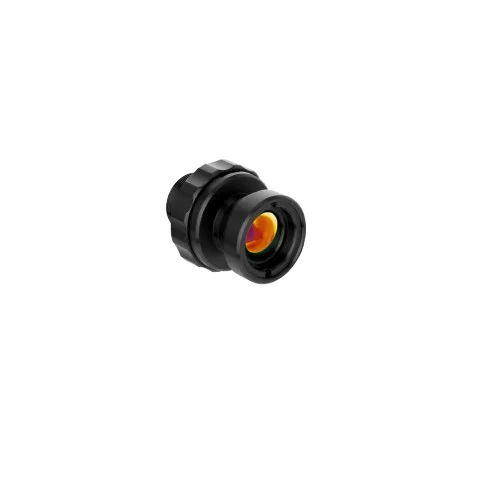

6 mm M12 lens with integrated liquid lensAperture range (F) 2.4Minimal object distance (M.O.D.) 0.10 mOptical class 1/2"
