1. Rapid Deployment Rig for Conveyor Line Volume Measurement

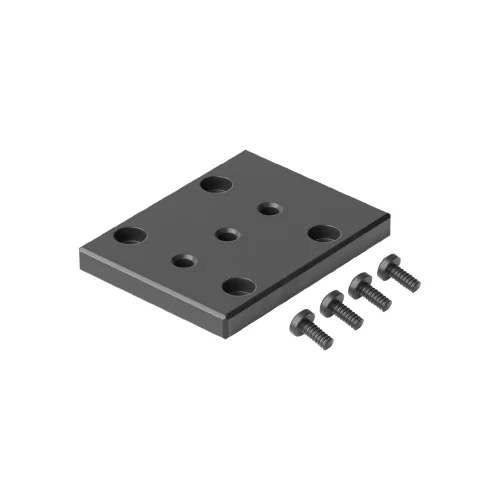

Utilizing the 1012997 tripod adapter set to mount an IDS Nion 3D Time-of-Flight camera [1.1] above high-speed logistics sorting belts. The adapter facilitates quick installation onto standard industrial tripods, allowing warehouse engineers to dynamically reposition the camera for spatial data capture on temporary or rerouted conveyor lines for fast volume measurement. The robust M4x8 TX (Torx) screws ensure the camera remains rigidly affixed despite heavy vibrations from the sorting machinery.
Problem SolvedFixed overhead gantries for vision systems are expensive and inflexible. This adapter solves the need for temporary, highly stable 3D vision deployments by enabling secure tripod mounting. The Torx-drive screws allow high-torque tightening without stripping during frequent relocations, maintaining calibration.
Tripod adapterSHR-ISO14583-M4x8-TX-8.8Torx (TX) DriveNion Compatible
2. Robotic Depalletizing Calibration Station
Setting up a temporary, flexible 3D vision guidance system for robotic arms to perform automated depalletizing tasks. The Nion camera is fixed to an industrial tripod adjacent to the pallet zone to stream high-resolution 1.2 MP point clouds. The adapter's black-oxide finish screws are specifically utilized to minimize light reflection, preventing interference with the Nion's highly sensitive indirect Time-of-Flight (iToF) illumination system.
Problem SolvedShiny fasteners near a Time-of-Flight optical sensor can cause localized glare or multipath reflections, leading to depth calculation errors. The black-oxide finish on the included screws eliminates optical noise, while the four M4 screws evenly distribute the holding force to keep the camera precisely aligned with the robot's coordinate system.
black-oxide finish4x ScrewsNion Camera SeriesOptical Noise Reduction
3. Mobile 3D Scanning Unit for Automotive Assembly Inspection
Mounting the Nion 3D camera to a mobile tripod base for spot-checking automotive body panel alignment and gap/flush measurements on the factory floor. The camera requires a steadfast connection to the tripod head to prevent drooping or shifting while being rolled across uneven factory concrete. The 8.8 grade high-tensile M4 screws provide the necessary structural integrity for the rugged IP67-rated Nion camera.
Problem SolvedInspectors need to move 3D cameras around large automotive chassis without losing camera-to-mount calibration. The high-tensile strength (8.8 grade) of the included SHR-ISO14583-M4x8 screws ensures that the IP67-rated industrial housing's weight is securely supported under dynamic transport loads, preventing accidental drops or angle shifts.
8.8 Tensile Strength GradeItem number 1012997M4x8 Fasteners1x Tripod adapter
