$ 15.18
Reliable 2m SICK YG2A14-020UB3XLEAX M12 sensor cable built for motion, oils, and harsh industrial use. Ensures stable, long-life connectivity for automation systems.

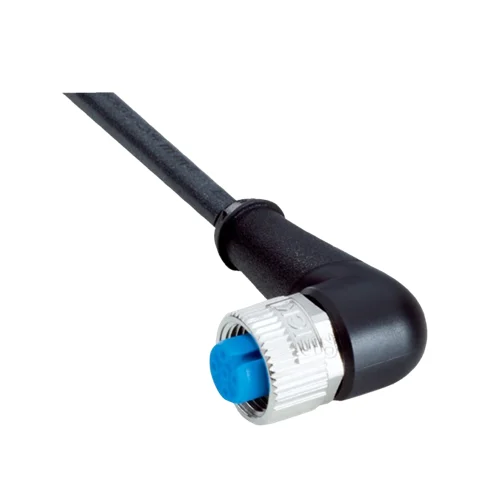

The SICK YG2A14-020UB3XLEAX sensor-actuator cable is built for dependable signal transmission in environments where machinery runs continuously and conditions can vary. It features a 4-pin angled M12 A-coded female connector paired with a rugged 2-meter PUR cable designed to withstand constant motion, bending, and exposure to oils. Its multi-standard ingress protection ensures stable operation even when equipment is washed down or exposed to dust. By offering long service life and secure electrical performance, this cable helps eliminate intermittent faults and provides reliable connectivity for sensors and actuators in automation systems.
The SICK YG2A14-020UB3XLEAX cable is engineered to deliver solid, consistent performance in industrial settings. Its halogen-free PUR jacket resists wear, oils, and temperature fluctuations, making it suitable for robotic arms, conveyors, and drag-chain systems. The angled connector design supports installations where straight connectors cannot fit, while the unshielded 4-wire configuration provides dependable transmission for general sensor and actuator applications. With a high bending-cycle rating and durable materials, it helps reduce maintenance frequency and keeps equipment running smoothly. Manufacturers and integrators benefit from a cable that offers long operational life and dependable plug-and-play integration.
The YG2A14-020UB3XLEAX stands out because it delivers long-lasting, stable connectivity in places where cables are constantly bent, twisted, or exposed to oils. Its angled M12 connector and tough PUR jacket make it ideal for compact installations and dynamic machinery. It’s a cable designed not just to connect devices, but to keep production running without surprises.
This model solves the ongoing challenge of unreliable sensor wiring in harsh or constantly moving environments. When standard cables fail due to vibration, oil exposure, or tight routing paths, this cable maintains electrical integrity and mechanical durability. It prevents intermittent signals, reduces downtime, and ensures automation systems stay responsive and stable.
| Feature | Details | Benefit |
|---|---|---|
| Connector Type (Head A) | M12, 4-pin, angled, A-coded | Fits tight mounting spaces and ensures secure, vibration-resistant connection |
| Connector Type (Head B) | Flying leads, open end | Flexible integration into custom wiring, cabinets, or terminal blocks |
| Cable Length | 2 meters | Ideal length for machine installations and routing in automation cells |
| Cable Material | PUR, halogen-free, black | High durability, resistant to oils, wear, and temperature variations |
| Cable Diameter | 4.5 mm | Easy to route while remaining mechanically strong |
| Conductor Cross Section | 0.34 mm² | Reliable signal and power transmission for sensors and small actuators |
| Shielding | Unshielded | Suitable for general-purpose sensor connections in non-EMI-critical areas |
| Current Loading | 4 A | Supports a wide range of sensors and light actuators |
| Voltage Rating | 300 V AC cable rating | Ensures stable operation in industrial control circuits |
| Bending Radius | >10× diameter (flexible), >5× (static) | Reduces strain and supports long cable life |
| Bending Cycles | 10,000,000 cycles | Excellent for drag-chain and repetitive motion applications |
| Torsion Rating | 180° per 1 m, 2,000,000 cycles | Ideal for robotic joints and rotating equipment |
| Ingress Protection | IP65 / IP66K / IP67 | Works in washdowns, dusty zones, and outdoor machinery |
| Operating Temperature | –25°C to +80°C (flex/drag), –40°C to +80°C (static) | Reliable performance across wide environmental conditions |
| Locking Nut Material | Zinc die-cast, nickel-plated | Secure fastening with corrosion resistance |
| Seal Material | FKM | Strong sealing performance against oils and fluids |
| Application Areas | Robotics, drag-chain systems, oily zones, clean zones | Built for high-motion and demanding industrial environments |
| Certification | CE, UKCA, China-RoHS, cULus | Meets international compliance for global machine builders |
Download SICK YG2A14-020UB3XLEAX (2095766) Datasheet
| Commercial Data | Details |
|---|---|
| Weight | 74 g |
| Country of Origin | Czech Republic |
In robotic assembly environments, cabling is exposed to twisting, bending, and nonstop dynamic movement. The YG2A14-020UB3XLEAX performs exceptionally well because its torsion-rated construction and long bending-cycle endurance prevent signal interruptions even when robot wrists or compact actuators repeatedly rotate. The angled M12 connector simplifies routing through narrow robotic joints, reducing the risk of snagging or strain. Its PUR jacket allows it to function reliably in areas with lubricants, vibration, and metal debris. By maintaining stable sensor communication on grippers, alignment tools, or position detectors, the cable supports continuous operation and lowers maintenance caused by cable fatigue.
Machines such as CNC systems rely on sensors to track spindle states, detect safety doors, and monitor coolant usage. These sensors are often connected through drag chains where cables bend thousands of times in a single shift. The YG2A14-020UB3XLEAX handles this environment thanks to its robust insulation and high bend-resistance rating. It routes easily through tight control areas, and the angled connector provides extra clearance inside compact housings. The cable’s PUR material withstands machining fluids and constant movement, ensuring sensors maintain stable output. This reduces troubleshooting time and helps machine tools operate continuously without unexpected sensor failures.
Automated conveyor systems require dependable wiring for product detection, speed monitoring, diverter control, and jam prevention. These environments often involve vibration, moisture, and frequent cleaning. The YG2A14-020UB3XLEAX excels in such setups because its sealing performance and durable jacket protect it from washdowns and mechanical stress. The angled M12 connector enables installation under conveyor frames where straight connectors may not fit. Even when conveyors accelerate, stop abruptly, or handle mixed product loads, the cable maintains consistent electrical contact. This helps avoid false signals or unplanned stoppages, supporting smoother flow and higher throughput in packaging facilities.
Autonomous mobile robots rely on accurate sensor feedback to navigate aisles, avoid obstacles, and interact with storage zones. These systems require cables that survive continuous motion, sharp steering angles, and compact routing channels inside the robot body. The YG2A14-020UB3XLEAX is well-suited for these platforms because it resists oil, abrasion, and frequent bending. The flying-lead end allows integrators to build custom wiring harnesses, while the angled M12 connector helps conserve internal space. Its mechanical stability minimizes the risk of intermittent signals, enabling the robot’s detection systems to operate smoothly and ensuring reliable navigation throughout long daily cycles.
| Category | Model Name | Part Number | Description & Benefit |
|---|---|---|---|
| M12 Connector (Male, Straight) | STE-1205-G | 6022083 | 5-pin M12 male connector with screw-type terminals. Ideal for creating custom sensor/actuator wiring or terminating flying-lead cables. Supports general fieldbus and machine wiring. |
| M12 Connector (Female, Straight) | DOS-1205-G | 6009719 | 5-pin M12 female connector designed for durable field wiring. Suitable for extending sensor cables or replacing damaged connectors in automation systems. |
| Torque Tool for M12 Connectors | TOOL-TW06M12AF13 | 5337208 | Calibrated torque tool for tightening M12 connectors to 0.6 Nm. Ensures proper sealing and consistent installation quality, preventing over-torquing or loose fittings. |
